You are driving with a loaded trailer behind you, and the only thing between you and a smooth, controlled stop is the brake controller under your dash. A good trailer wiring kit with brake keeps you and your trailer in sync, whether you are heading down a highway or into a campsite. The wrong one leaves you with jerky stops, delayed reactions, or a setup that feels like guesswork.
I’m Mo Maruf — the founder and writer behind GoCarLife. This guide is built by comparing the manufacturers’ published specifications and the patterns across verified customer reviews, so you get each pick’s real strengths and trade-offs instead of marketing spin.
You want a brake controller that makes your trailer stop smoothly and safely every time. These are the best trailer wiring kit with brake options — each one earned its spot by delivering real confidence on the road, backed by specs and owner feedback.
Our Picks at a Glance
How To Choose The Best Trailer Wiring Kit with Brake
To pick the right brake controller, you need to understand a few specs that directly affect how your trailer behaves. Here is what matters before you buy.
Proportional vs. Time-Delay Braking
A proportional brake controller uses a built-in sensor to match your trailer’s braking force to how hard you press your truck’s brake pedal. It applies the trailer brakes gradually when you slow down gently and harder when you stop fast. A time-delay model sends a fixed amount of power to the trailer brakes after a delay you set — it is simpler but can feel more abrupt. For most towing, proportional is the smoother and safer choice.
Axle and Brake Compatibility
Controllers are rated to handle a certain number of axles or brakes. A unit that supports 1-2 axles (typically 2-4 brakes) works for small to medium trailers like pop-up campers and utility trailers. Models that handle 1-4 axles (2-8 brakes) are built for larger RVs, horse trailers, or flatbeds. Picking a controller with the right range ensures it can deliver enough braking power without strain.
Installation and Wiring Setup
Most controllers connect to your vehicle using a 4-wire system: black for vehicle power, red for stop light, white for ground, and blue for trailer brakes. Some units come with a plug-and-play port for a vehicle-specific harness (sold separately), which makes installation cleaner. Split-design models place the control knob or display on the dash and hide the main module elsewhere, saving space under your dash.
Quick Comparison
| Model | Best For | Braking Type | Axle Support | Weight | Amazon |
|---|---|---|---|---|---|
| REDARC Tow-Pro Liberty★ Best Overall | Premium compact install | Proportional | 1-2 axles | 8.8 oz | Amazon |
| Tekonsha 8508220 Brake-EVNBest Value | Reliable proportional braking | Proportional | 1-4 axles | 9.6 oz | Amazon |
| Kohree Upgraded Split DesignInnovative Design | Split-design versatility | Proportional | 1-4 axles | — | Amazon |
| CURT 51170 Spectrum | Factory-look dash knob | Proportional | — | 281 g (9.9 oz) | Amazon |
| CURT 51116 Venturer Next | Budget-friendly time-delay | Time-Delay | 1-3 axles (2-6 brakes) | 9.6 oz | Amazon |
| Lrichy N8508211 Upgrade | Simple proportional upgrade | Proportional | 1-4 axles (2/4/6/8 brakes) | 8.4 oz | Amazon |
| HRepair Universal 90160 | Proportional with boost modes | Proportional | 1-3 axles | 1.08 lb (17.3 oz) | Amazon |
| LAJBZ TBK807 Proportional | Self-leveling performance | Proportional | 1-3 axles | 15.5 oz | Amazon |
| Timilge BC06 Proportional | Budget proportional option | Proportional | 1-4 axles (2-8 brakes) | 8.4 oz | Amazon |
In‑Depth Reviews
1. REDARC Tow-Pro Liberty Electric Trailer Brake Controller
Our pick — over 4.5★ from 750+ verified ratings; the strongest balance of quality and price.
The premium controller that hides under your dash and delivers Outback-tested smoothness.
This is the controller for anyone who values a factory-clean install over a bulky box under the dash. The Tow-Pro Liberty uses a compact remote head that mounts separately — the 3’3″ (1 m) cable lets you place the control knob exactly where you want it, while the main unit stays hidden. It supports 1 to 2 axles, making it a strong fit for most common trailer braking applications like a travel trailer or camper. What wins people over is the proportional mode braking and active calibration that reduces push-and-pull, giving you smooth on-road control whether the trailer is hitched or not.
Owners rave about this controller’s functionality — it is the most-discussed strength. Installation is the second biggest praise. Reviews describe a roughly 30-minute install, with one owner using a slightly larger drill bit for the button hole. The compact size (6.7 x 6.3 x 2.2 inches) is also a recurring compliment. Buyers report that the dial blends into a blank plate and looks factory-installed. The crowd favorite earns 4.6 stars across 700+ owners. The only recurring head-scratcher is the wiring: you will need to buy the vehicle-specific pigtail harness (TPH-025) separately. As owners mention, “initial gain 6 worked perfectly with 9,100 lb trailer; smooth, no adjustments needed over 425 miles.” The 2-year limited warranty adds confidence for the long haul.
What Owners Love
- Compact, hidden install with a factory-like appearance
- Smooth proportional braking with active calibration and sway control
- Tested in the Australian Outback for durability
Things to Note
- Wiring harness sold separately
- Some setups need a spacer for the button on thicker dashes
- Not ideal for off-road towing vs. the Elite model
Your best pick if: You want a clean, compact install with proportional braking that feels natural on highways.
Reach for something else if: You have more than 2 axles or need a wiring harness included in the box.
2. Tekonsha 8508220 Brake-EVN Proportional Brake Controller
The proportional workhorse with a proven name for up to 4 axles.
Tekonsha is a name you see everywhere in towing circles, and the 8508220 Brake-EVN lives up to the reputation. It is a proportional brake controller that uses an internal inertia sensor to match your trailer’s braking to your truck’s stopping force automatically. It handles 2, 4, 6, and 8 brakes (1-4 axles), so it works whether you are pulling a small utility trailer or a larger tandem-axle rig. The digital LED display shows settings, real-time diagnostics, and alerts — all easy to read at a glance. At 9.6 ounces, it is light enough to install without worrying about support brackets. The Ease of installation and Quality are the next most praised aspects. Owners consistently call it straightforward to set up; one owner on an 03 Silverado 2500HD paired it with the 3015 cable and had it plugged into the under-dash fuse box quickly. The manual lever lets you apply trailer brakes independent of your tow vehicle’s brake pedal. The value-for-money praise is strong — the consensus is you get a capable proportional controller without spending for unnecessary extras.
The big picture: If you want a reliable proportional controller that works with large trailers and comes from a brand owners trust, this is it. Just budget for the vehicle-specific plug-and-play harness, which is sold separately.
Who it suits: Anyone towing up to 4 axles who wants automatic proportional braking from a respected brand.
Look elsewhere if: You need the wiring harness included in the box.
3. Kohree Upgraded Trailer Brake Controller Kit, Split Design
A modular controller that puts the display on your windshield and the brains behind your panel.
This Kohree kit rethinks how a brake controller fits into your vehicle. Instead of one box, it splits into a separate LCD display you mount on the windshield and a brake controller module you hide in the rear interior panel. The two connect via a Type-C data cable included in the box. This split design frees up under-dash space and lets you read braking voltage and diagnostics without bending down. The controller uses four 32-bit processor chips — two in the display and two in the module — each independently processing and validating data. You get 9 levels of boost to tailor sensitivity to your trailer’s weight, and the proportional braking system auto-levels in any mounting angle. The ease of use is the top aspect owner’s mention, and the build quality is a close second. One owner installed it on a 2024 Ram HD using an adapter harness and noted the pad fits perfectly in the original equipment spot.
One honest trade-off: The LCD screen stays on at all times, which can be distracting at night. A few owners also mention the kit is light on included zip ties and splices. But for those who want a clean, modern setup with granular boost control, this is a seriously impressive unit.
Grab this if: You love the idea of a modular, boost-rich controller that hides the main module and puts the display in your line of sight.
Think twice if: A constantly-lit display at night would bother you.
4. CURT 51170 Spectrum Brake Control
A compact, factory-style knob that hides the module and uses a triple-axis sensor for smooth stops.
If you want your brake controller to look like it was part of the vehicle’s original dashboard, this is the one. The CURT Spectrum separates the main module (which tucks away out of sight) from a clean rotary knob with 10 tri-color LEDs that mounts on your dash. The knob controls all brake settings with a simple push and turn, giving you proportional braking based on a triple-axis motion-sensing accelerometer. This three-way sensor measures acceleration in multiple directions to respond more naturally than older single-axis designs. The manual override is a button press away. Owners rave about what one called a “factory-like appearance” on their Silverado. The compact knob design also avoids knee interference, a common complaint with larger box-style controllers. One owner who installed it on an 07-13 Silverado with an harness adapter called the install straight forward.
Worth knowing: The main module is under your dash, so the only visible part is the small knob. A few owners note that random lights may occasionally light up — the manufacturer says that is normal behavior. The limited lifetime manufacturer warranty backs this up.
Best for: Anyone who wants a premium, nearly invisible install with among the most responsive accelerometer (a sensor that measures sudden speed changes) setups available.
Consider something else if: You want a simpler, lower-cost proportional controller.
5. CURT 51116 Venturer Next Electric Trailer Brake Controller
A slim, time-delay controller that is a smart pick for vehicles with a factory tow package.
The Venturer Next is a time-delay brake controller, meaning it sends a burst of power to your trailer brakes after a delay you set, rather than matching your pedal pressure proportionally. It is a fully adjustable unit that handles 2 to 6 trailer brakes (1-3 axles). What stands out is the slim, low-profile design and the unique bracket system that improves dash clearance. It requires no internal moving parts and no leveling — just mount it, set your power and ramp time, and go. Owners praise the functionality and how easy it is to install. One owner called it a “perfect drop-in replacement” for a Hayes G45, swapping in during a 5-minute job. Another on a 1992 F150 paired it with the CURT 51312 harness and had it synced up for a trailer rewire. The connectivity aspect gets positive marks, and the adjustability aspect is mixed — some find the settings hard to tweak while driving.
Bottom line: If your towing is mostly on flat roads and you want a simple, affordable, easy-to-install controller from a trusted brand, the Venturer Next delivers. The time-delay feel is not as refined as proportional for stop-and-go traffic, but for occasional towing it works perfectly.
Good fit if: You want a straightforward, slim controller for a vehicle with a tow package and do not need proportional braking.
Not ideal if: You tow heavy loads through hilly terrain or want the smoother feel of a proportional system.
6. Lrichy N8508211 New Upgrade Proportional Brake Controller
A budget-friendly proportional upgrade that promises smoother braking than the older time-delay models.
This Lrichy controller targets anyone upgrading from an older time-delay unit like the 8507111. It uses internal sensors to automatically apply trailer brakes based on your tow vehicle’s braking intensity, and it adjusts for hills as you drive. It supports 2, 4, 6, and 8 brakes (1-4 axles) and is compatible with Ford, GM, Chevy, Dodge, RAM, Toyota, Jeep, and more. The LED digital display shows settings, real-time diagnostic information, and alarms. For manual braking, you slide the manual lever to the left. The functionality and ease of installation are the top aspects noted by owners. Several reviews mention it was easy to install and works perfectly — one was installed in a semi truck. The 2-year warranty is included. The value callout is strong; one owner noted it works perfectly and called the price point amazing.
One caveat from owners: The manual slider direction is opposite to some pricier brands (slides left instead of right), which takes getting used to. A few also note the adjusting buttons feel less premium. But for a controller at this level, the proportional performance (braking force matched to how hard you stop) is tough to top.
Pick this if: You are on a tighter budget but want proportional braking and more axle support than basic units.
Pass if: The reversed manual slider would bother you, or you want a more premium-feeling control surface.

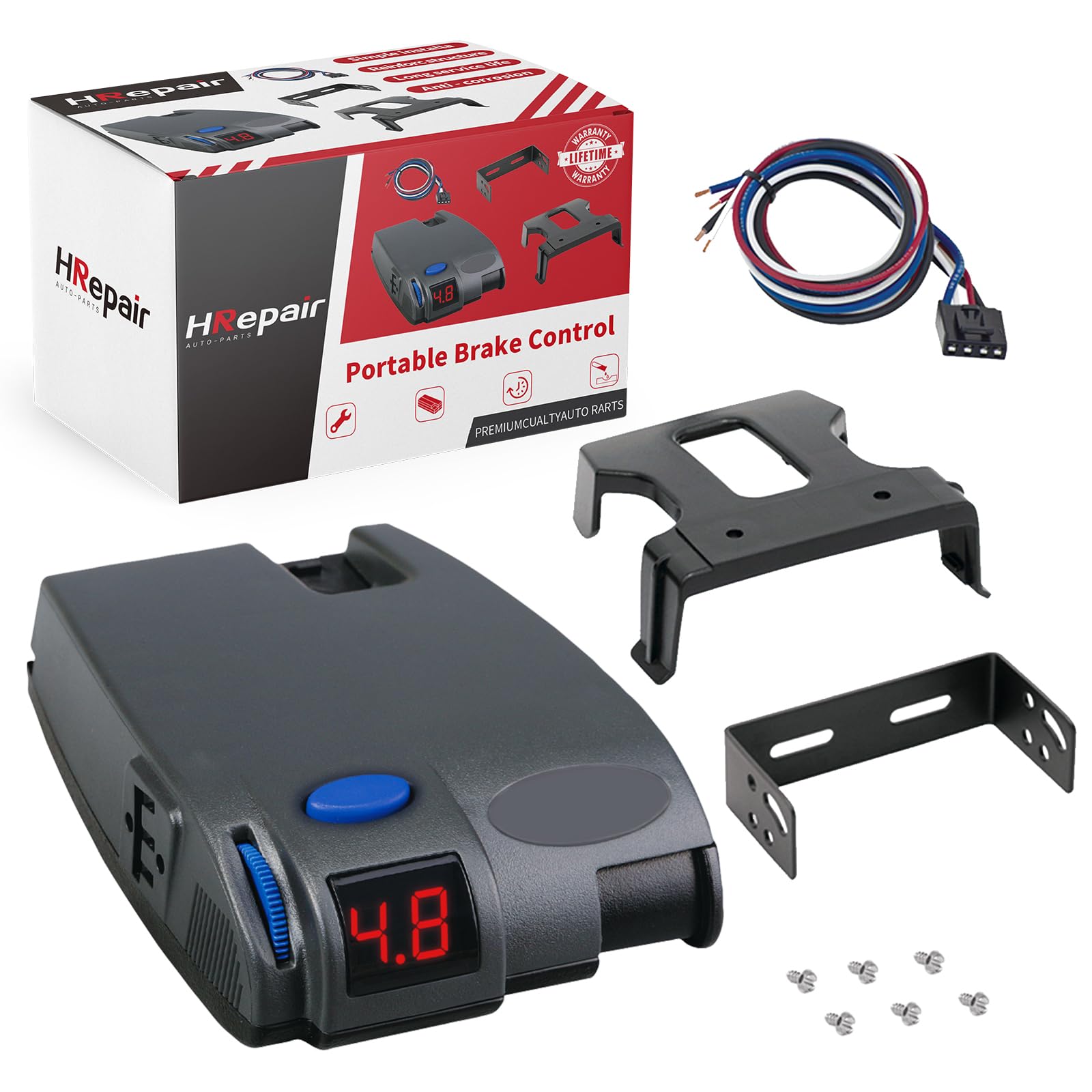

7. HRepair Universal Trailer Brake Controller (Replacement 90160 Primus IQ)
A proportional controller with three boost settings for tailoring braking to different loads.
If you tow a mix of light and heavy loads, the HRepair controller’s three boost settings let you dial in the power without guessing. It is a proportional braking system designed for trailers with 1-3 axles, and it uses self-leveling technology and advanced circuit protection. The digital display provides real-time brake settings and connection status, plus continuous diagnostics. You can manually apply trailer brakes using the manual override lever. The unit mounts with a snap-in clip or bracket, giving you a 180-degree range of adjustments. Installation is simple according to owners. The functionality and installation are the most-discussed aspects, with one owner connecting it to a 2015 Ford E450’s factory trailer brake plug for a quick setup. Another called it a great value that looks great and is simple to install.
Something to know: One owner had a negative experience, saying the description did not match the product. That said, the broader owner feedback is overwhelmingly positive. The lifetime free replacements and 90-day low-maintenance returns offer good protection.
Reach for this if: You want a proportional controller with multiple boost settings to handle varying trailer weights.
Look elsewhere if: You need a controller for more than 3 axles or prefer a more established brand.

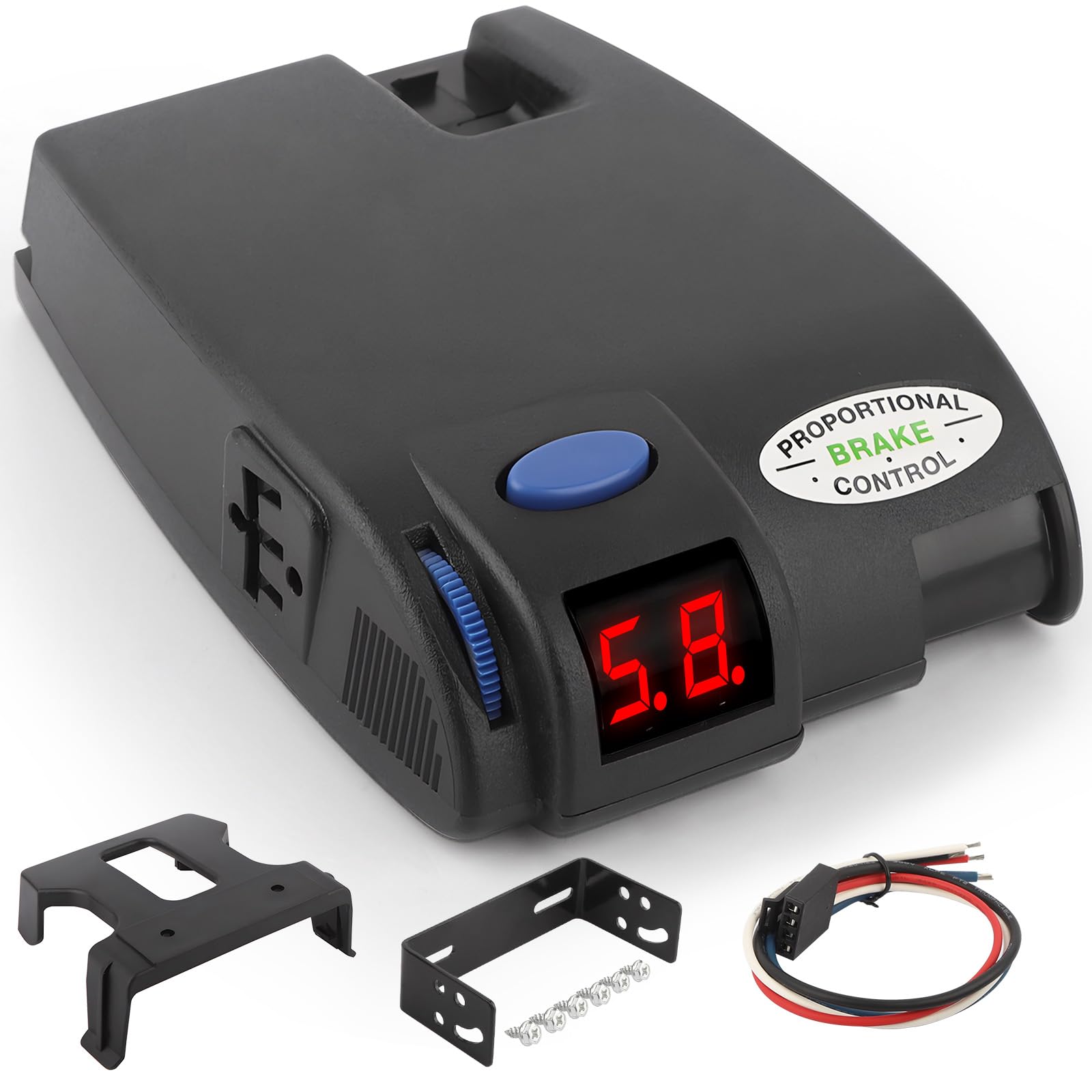

8. LAJBZ TBK807 Proportional Electric Trailer Brake Controller
A self-leveling, boost-equipped controller that owners call identical to the name-brand version.
The LAJBZ TBK807 is a proportional brake controller with a smart internal sensor that auto-adjusts for accurate braking regardless of your installation angle — no manual leveling needed. It offers three boost settings so you can fine-tune braking power for heavy loads. The backlit LED screen shows real-time voltage, connection status, and diagnostics. It is designed for trailers with 1-3 axles and mounts under the dash with the included clip. The functionality and installation are the top mentioned aspects. One owner praised the “affordable, clear instructions” and said it works perfectly for their 6000 lb trailer. Another owner, who tows everything from single-axle small trailers to heavy double-axle trailers, reported never flat spotting a trailer tire with this unit. A different owner noted it operates smoothly and subtly on their 2004 Dodge pulling a 26 ft toy hauler.
The honest take: At 15.5 ounces, it is heavier than most controllers here, but the self-leveling makes up for it in convenience, especially if your dash angle is weird. Owners say it works great and is exactly the same as the name brand version.
Ideal for: Those towing mixed loads who want a self-leveling proportional controller with boost modes at a reasonable price.
skip it if: Weight is a concern or you need support for more than 3 axles.
9. Timilge BC06 Proportional Trailer Brake Controller
The most affordable route to proportional braking for up to 4 axles.
If you are on a tight budget but refuse to give up the natural feel of proportional braking, this Timilge controller is the gateway. It uses an internal sensor to automatically replicate your braking intensity — gradual stops or panic stops — and sends that signal to your trailer’s brakes. It fits 1 to 4 axles (2 to 8 brakes) and has both braking power and rate of sync adjustments. The LED digital display shows voltage delivery from the controller to the brakes so you can monitor performance in real time. The 4-wire setup (black for vehicle power, red for stop light, white for ground, blue for trailer brakes) is standard. The value-for-money praise is a recurring point. One owner said it “facilitated much shorter braking distances than just my truck brakes alone.” Another replaced a malfunctioning Curt Venturer with this and found it better, simpler, and less expensive. The unit weighs 8.4 ounces and is compact at 4.33 x 2.76 x 1.1 inches.
The catch: This budget price comes with a firm warning from the manufacturer — you must completely power down or disconnect the controller when the truck is shut off or left unused for long periods. A few owners also note a light stays on even when the unit is idle. For the cost, though, the proportional performance is real.
Best for: The bargain-hunter who needs proportional braking for up to 4 axles and can remember to disconnect it when parked.
Not for you if: You want a controller you can leave connected at all times without thinking about it.
Understanding the Specs
Proportional vs. Time-Delay Braking
A proportional brake controller uses an internal sensor (often called an inertia sensor or accelerometer) to detect how fast your tow vehicle is decelerating. It then sends a matching amount of power to the trailer brakes. This gives you a smooth, natural feel — you press the brake pedal gently, the trailer brakes gently. A time-delay controller sends a preset burst of power after a delay you set. It is simpler and cheaper, but it can feel jerky. For most towing, proportional is the safer and more comfortable choice.
Axle and Brake Support
Every controller is rated for a maximum number of axles or brakes, usually stated as something like “1-2 axles” or “2-6 brakes.” One axle typically has two brakes. If your trailer has 4 axles (like a heavy equipment trailer), you need a controller that supports up to 8 brakes. Matching this spec to your trailer ensures the controller can deliver enough braking force without overheating or cutting out.
FAQ
Can I install a brake controller myself?
What does proportional braking actually feel like when towing?
Do all trailer brake controllers work with any vehicle?
What is a split-design brake controller?
How do I know how many axles my brake controller needs to support?
What does the boost mode on a brake controller do?
Is it safe to leave my brake controller connected when the truck is off?
What does the manual override lever do on these controllers?
How long does it take to install a typical brake controller?
What is the difference between Brake-EVN 8508220 and the Lrichy N8508211?
Final Thoughts: The Verdict
For most buyers, the trailer wiring kit with brake winner is the REDARC Tow-Pro Liberty because it combines a compact, hidden install with smooth proportional braking that owners trust for the long haul. If you want a reliable proportional controller for large trailers without spending top dollar, grab the Tekonsha 8508220 Brake-EVN. And for a modern split-design that puts the display where you can see it, the Kohree Upgraded Split Design is the one to reach for.
